MECHANICAL DESIGN

NEW PROPOSED DIMENTIONS for M10CUBE FRAMEWORK
These propossed dimentions are experimental, printed and see how it goes after discussion.
External CUBE dimensions remains the same:100x100x100 mm. Enclosure is made of three parts

1 - Bottom 15mm
2 - Middle 15mm
3 - Top 15 mm

3D Files

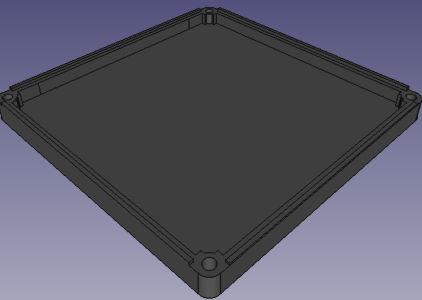

Top Part

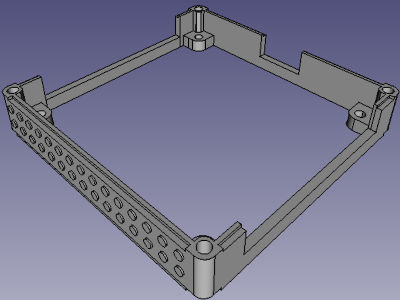

Middle Part

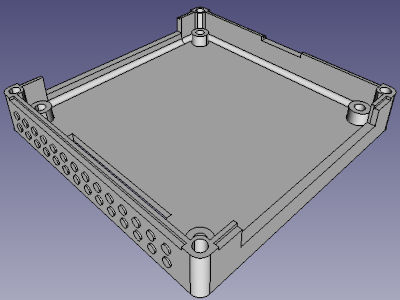

Bottom Part
